2SK3147S, 2SK3147, Silicon N-Channel Power MOSFET

Data Sheet 2SK3147(L), 2SK3147(S) 100V, 5A, 0.13Ωmax.Silicon N Channel Power MOS FET High Speed Power Switching R07DS1254EJ0400 (Previous: REJ03G10.

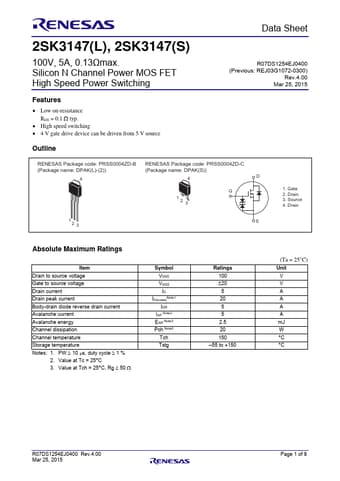

datasheet Preview Page 1 from Datasheet4u.com

2SK3147-Renesas.pdf

2SK3147S Datasheet Preview — This datasheet PDF includes multiple part numbers: 2SK3147S, 2SK3147. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2SK3147S, 2SK3147

Manufacturer:

Renesas ↗

File Size:

138.56 KB

Description:

Silicon N-Channel Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: 2SK3147S, 2SK3147.
Please refer to the document for exact specifications by model.

Features

* Low on-resistance RDS = 0.1  typ.
* High speed switching
* 4 V gate drive device can be driven from 5 V source Outline RENESAS Package code: PRSS0004ZD-B (Package name: DPAK(L)-(2)) 4 RENESAS Package code: PRSS0004ZD-C (Package name: DPAK(S)) 4 12 3 G D 1. Gate 2. Drain 3. Sour
