557G08LF - 2:1 MULTIPLEXER

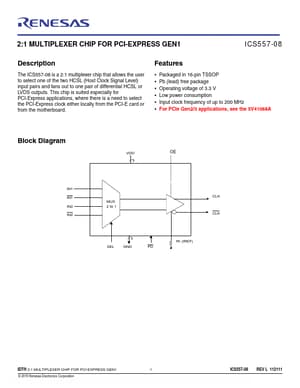

The ICS557-08 is a 2:1 multiplexer chip that allows the user to select one of the two HCSL (Host Clock Signal Level) input pairs and fans out to one pair of differential HCSL or LVDS outputs. This chip is suited especially for PCI-Express applications, where there is a need to select the PCI-Express.

557G08LF Features

* Packaged in 16-pin TSSOP

* Pb (lead) free package

* Operating voltage of 3.3 V

* Low power consumption

* Input clock frequency of up to 200 MHz

* For PCIe Gen2/3 applications, see the 5V41068A Block Diagram VDD OE 3 IN1 IN1 CLK MUX IN2 2 to
