557GI06LF - 2 TO 4 DIFFERENTIAL PCIE GEN1 CLOCK MUX

Product Overview

Renesas

📥 Download Datasheet

557GI06LF 2 TO 4 DIFFERENTIAL PCIE GEN1 CLOCK MUX by Renesas - Datasheet Preview — Datasheet preview – 557GI06LF

Datasheet Details

Part number	557GI06LF
Manufacturer	Renesas
File Size	287.74 KB
Description	2 TO 4 DIFFERENTIAL PCIE GEN1 CLOCK MUX
Datasheet	557GI06LF Datasheet
Note	This datasheet PDF includes multiple part numbers: 557GI06LF, 557G06LF. Please refer to the document for exact specifications by model.

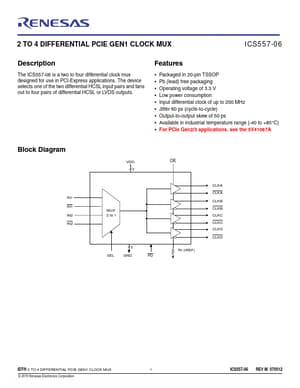

Additional preview pages of the 557GI06LF datasheet.

Product details

Description

The ICS557-06 is a two to four differential clock mux designed for use in PCI-Express applications.

Features

Packaged in 20-pin TSSOP.
Pb (lead) free packaging.
Operating voltage of 3.3 V.
Low power consumption.
Input differential clock of up to 200 MHz.
Jitter 60 ps (cycle-to-cycle).
Output-to-output skew of 50 ps.
Available in industrial temperature range (-40 to +85°C).
For PCIe Gen2/3.
