9DBL0455 Datasheet, buffers equivalent, Renesas

9DBL0455 Features

  • Buffers to aid robust designs. Flexible Power Sequencing (FPS) ensures well-defined behavior under various power up scenarios, while Power Down Tolerant (PDT) ESD protection allows input pins t

PDF File Details

Part number:

9DBL0455

Manufacturer:

Renesas ↗

File Size:

685.23kb

Download:

📄 Datasheet

Description:

2 and 4-output 3.3v pcie gen1-5 clock fanout buffers. The 9DBL0255/9DBL0455 are 2 and 4-output PCIe Clock fan-out buffers for PCIe Gen1  –5 applications. Both parts have an

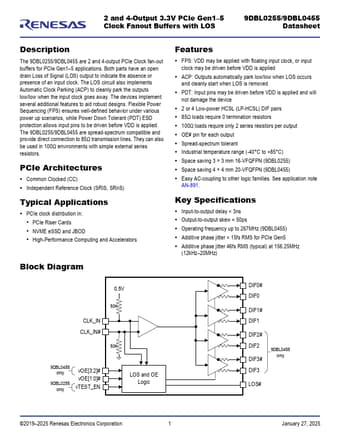

Datasheet Preview: 9DBL0455 📥 Download PDF (685.23kb)
Page 2 of 9DBL0455 Page 3 of 9DBL0455

9DBL0455 Application

  • Applications Both parts have an open drain Loss of Signal (LOS) output to indicate the absence or presence of an input clock. The LOS circuit also
