DA14701 - Multi-??ore Wireless SoC

Renesas

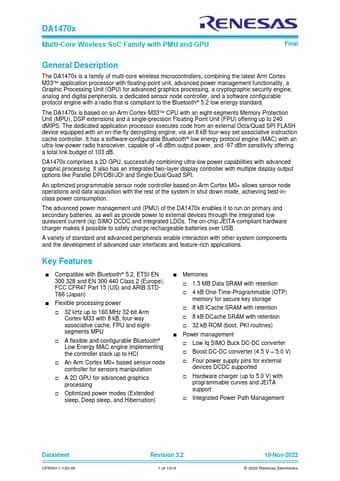

DA14701 Datasheet Preview — Preview of DA14701 PDF

Datasheet Details

Part number	DA14701
Manufacturer	Renesas ↗
File Size	9.31 MB
Description	Multi-??ore Wireless SoC
Datasheet	DA14701-Renesas.pdf

DA14701 Product details

Description

The DA1470x is a family of multi-core wireless microcontrollers, combining the latest Arm Cortex M33TM application processor with floating-point unit, advanced power management functionality, a Graphic Processing Unit (GPU) for advanced graphics processing, a cryptographic security engine, analog and digital peripherals, a dedicated sensor node controller, and a software configurable protocol engine with a radio that is compliant to the Bluetooth® 5.2 low energy standard.

Features

Compatible with Bluetooth® 5.2, ETSI EN 300 328 and EN 300 440 Class 2 (Europe), FCC CFR47 Part 15 (US) and ARIB STDT66 (Japan).
Flexible processing power.
32 kHz up to 160 MHz 32-bit Arm Cortex-M33 with 8 kB, four-way associative cache, FPU and eightsegments MPU.
A flexible and configurable Bluetooth® Low Energy MAC engine implementing the controller stack up to HCI.
An Arm Cortex M0+ based sensor node controller for sensors manipulation.
A 2D GPU.
