DA16200MOD - Ultra Low Power Wi-Fi SoC

Product Overview

Renesas

📥 Download Datasheet

DA16200MOD Ultra Low Power Wi-Fi SoC by Renesas - Datasheet Preview — Datasheet preview – DA16200MOD

Datasheet Details

Part number	DA16200MOD
Manufacturer	Renesas
File Size	1.58 MB
Description	Ultra Low Power Wi-Fi SoC
Datasheet	DA16200MOD Datasheet

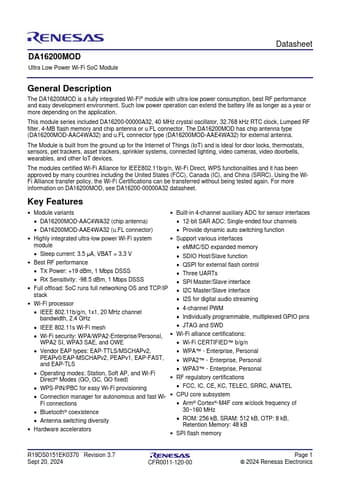

Additional preview pages of the DA16200MOD datasheet.

Product details

Description

The DA16200MOD is a fully integrated Wi-Fi® module with ultra-low power consumption, best RF performance and easy development environment.

Features

Module variants.
Built-in 4-channel auxiliary ADC for sensor interfaces.
DA16200MOD-AAC4WA32 (chip antenna).
12-bit SAR ADC: Single-ended four channels.
DA16200MOD-AAE4WA32 (u. FL connector).
Provide dynamic auto switching function.
Highly integrated ultra-low power Wi-Fi system.
Support various interfaces module.
eMMC/SD expanded memory.
Sleep current: 3.5 μA, VBAT = 3.3 V.
SDIO Host/Slave function.
