DA1616S25, DA1575S25T4A Dielectric Patch Antenna

DA1616S25 Description

* Product Introduction Token (DA) Dielectric Patch Antenna Technology Makes The List..

DA1616S25 Features

* :
* Small patch dimensions.
* Using high quality factor.
* Stabilized temperature coefficient.

DA1616S25 Applications

* :
* Global Positioning Systems (GPS)
* GPS Hold, Car Navigation System, GPS PDA.
* W-LAN. Dielectric antenna is fed using coaxial ceramic media. By a coaxial extension of the inner conductor to form an oscillator, used to excitation of electromagnetic waves, the sleeve of the role of th

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DA1616S25, DA1575S25T4A. Please refer to the document for exact specifications by model.

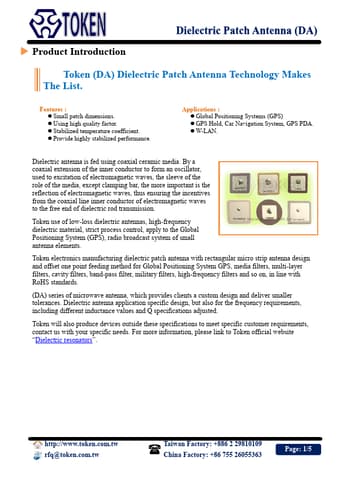

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DA1616S25, DA1575S25T4A
Manufacturer
Token
File Size
344.80 KB
Datasheet
DA1575S25T4A-Token.pdf
Description
Dielectric Patch Antenna
Note
This datasheet PDF includes multiple part numbers: DA1616S25, DA1575S25T4A.
Please refer to the document for exact specifications by model.
