DA9098 Datasheet - Renesas

DA9098-Renesas.pdf

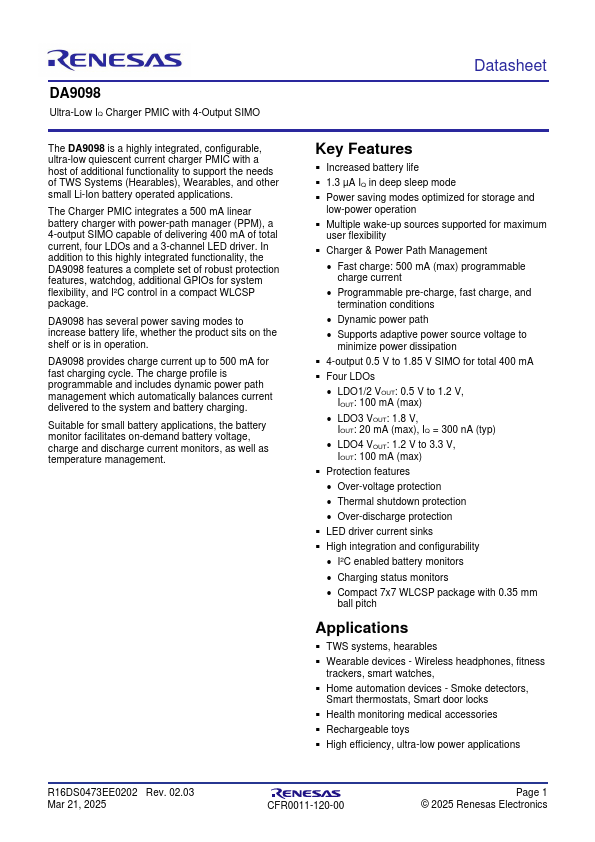

Preview of DA9098 PDF
DA9098 Datasheet Preview Page 2 DA9098 Datasheet Preview Page 3

Datasheet Details

Part number:

DA9098

Manufacturer:

Renesas ↗

File Size:

1.57 MB

Description:

Ultra-low iq charger pmic.

DA9098, Ultra-Low Iq Charger PMIC

9 4.

Specifications

DA9098 Ultra-Low IQ Charger PMIC with 4-Output SIMO The DA9098 is a highly integrated, configurable, ultra-low quiescent current charger PMIC with a host of additional functionality to support the needs of TWS Systems (Hearables), Wearables, and other small Li-Ion battery operated applications.

The Charger PMIC integrates a 500 mA linear battery charger with power-path manager (PPM), a 4-output SIMO capable of delivering 400 mA of total current, four LDOs and a 3-channel LED driver.

In addition

DA9098 Features

* a complete set of robust protection features, watchdog, additional GPIOs for system flexibility, and I2C control in a compact WLCSP package. DA9098 has several power saving modes to increase battery life, whether the product sits on the shelf or is in operation. DA9098 provides charge current up to
