DA9292 High-Performance Multi-Phase DC-DC Buck Converter

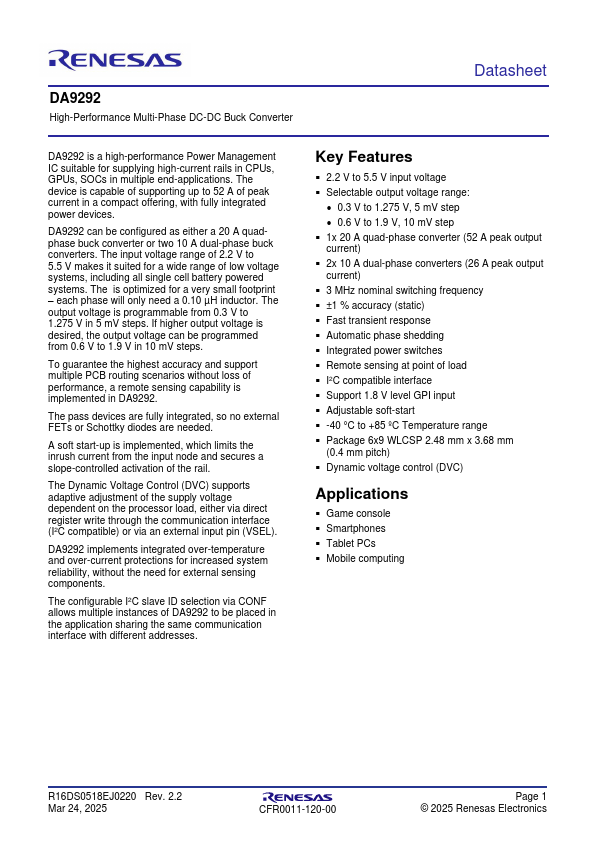

DA9292 High-Performance Multi-Phase DC-DC Buck Converter Datasheet DA9292 is a high-performance Power Management IC suitable for supplying high-current rails in CPUs, GPUs, SOCs in multiple end-applications. The device is capable of supporting up to 52 A of peak current in a compact offering, with fully integrated power devices. DA9292 can be configured as either a 20 A quadphase buck converter or two 10 A dual-phase buck converters. The input voltage range of 2.2 V to 5.5 V makes it suited fo.

DA9292 Features

* ▪ 2.2 V to 5.5 V input voltage ▪ Selectable output voltage range:

* 0.3 V to 1.275 V, 5 mV step

* 0.6 V to 1.9 V, 10 mV step ▪ 1x 20 A quad-phase converter (52 A peak output current) ▪ 2x 10 A dual-phase converters (26 A peak output current) ▪ 3 MHz nominal switching frequency ▪ ±1 %

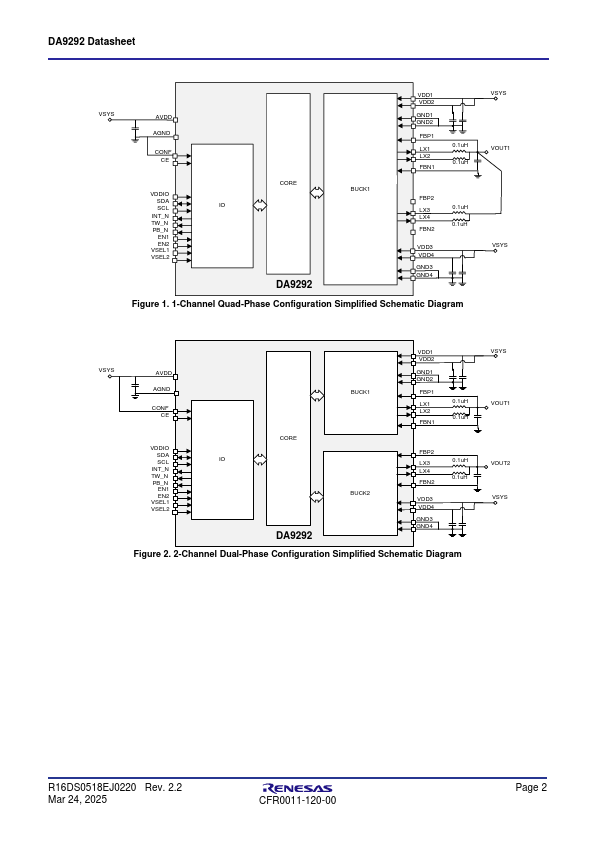

DA9292 Datasheet (2.33 MB)
