EL5304, EL5104 Datasheet - Renesas

EL5304 700MHz Slew-Enhanced VFAs

DATASHEET EL5104, EL5105, EL5204, EL5205, EL5304 700MHz Slew-Enhanced VFAs FN7332 Rev 8.00 May 25, 2016 The EL5104, EL5105, EL5204, EL5205, and EL5304 represent high speed voltage feedback amplifiers based on the current feedback amplifier architecture. This gives the typical high slew rate benefits of a CFA family along with the stability and ease of use associated with the VFA type architecture. This family is available in single, dual, and triple versions, with 200MHz, 400MHz, and 700MHz v.

EL5304 Features

* Specified for 5V or ±5V applications

* Power-down to 17µA

* -3dB bandwidth = 700MHz

* ±0.1dB bandwidth = 45MHz

* Low supply current = 9.5mA

* Slew rate

EL5104-Renesas.pdf

This datasheet PDF includes multiple part numbers: EL5304, EL5104. Please refer to the document for exact specifications by model.

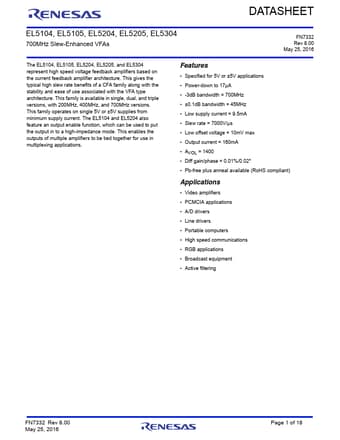

EL5304 Datasheet Preview Page 2 EL5304 Datasheet Preview Page 3

Datasheet Details

Part number:

EL5304, EL5104

Manufacturer:

Renesas ↗

File Size:

1.70 MB

Description:

700mhz slew-enhanced vfas.

Note:

This datasheet PDF includes multiple part numbers: EL5304, EL5104.
Please refer to the document for exact specifications by model.
