EL5300 200MHz Slew Enhanced VFA

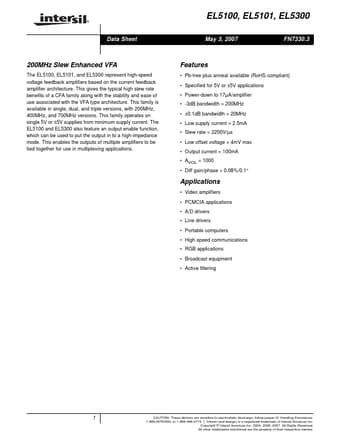

® Data Sheet EL5100, EL5101, EL5300 May 3, 2007 FN7330.3 200MHz Slew Enhanced VFA The EL5100, EL5101, and EL5300 represent high-speed voltage feedback amplifiers based on the current feedback amplifier architecture. This gives the typical high slew rate benefits of a CFA family along with the stability and ease of use associated with the VFA type architecture. This family is available in single, dual, and triple versions, with 200MHz, 400MHz, and 700MHz versions. This family operates on sing.

EL5300 Features

* Pb-free plus anneal available (RoHS compliant)

* Specified for 5V or ±5V applications

* Power-down to 17µA/amplifier

* -3dB bandwidth = 200MHz

* ±0.1dB bandwidth = 20MHz

* Low supply current = 2.5mA

* Slew rate = 2200V/µs

* Low offset
