F1471 - 0.5W High Linearity RF Amplifier

Renesas

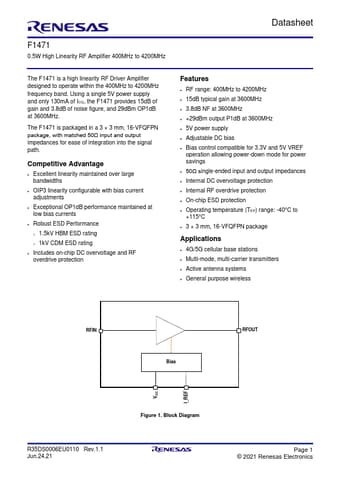

F1471 Datasheet Preview — Preview of F1471 PDF

Datasheet Details

Part number	F1471
Manufacturer	Renesas ↗
File Size	1.54 MB
Description	0.5W High Linearity RF Amplifier
Datasheet	F1471-Renesas.pdf

F1471 Product details

Description

4 2. Specifications 5 Absolute Maximum Ratings 5 Recommended Operating Conditions 5 Electrical Characteristics 6 2.3.1. General 6 2.3.2. 2300MHz to 2900MHz 6 2.3.3. 3300MHz to 3900MHz 7 2.3.4. 3800MHz to 4200MHz 8 Thermal Characteristics 8 3. Typical Operating Conditions (TOC) 9 4. Typical Performance Characteristics 10 2300MHz to 2900MHz 10 3300MHz to 3900MHz 11 3800MHz to 4200MHz 12 5. Programming 14 6. Applications Information 14 Power Supplies 14 7. Evaluation Kit Information 1

Features

RF range: 400MHz to 4200MHz.
15dB typical gain at 3600MHz.
3.8dB NF at 3600MHz.
+29dBm output P1dB at 3600MHz.
5V power supply.
Adjustable DC bias.
Bias control compatible for 3.3V and 5V VREF operation allowing power-down mode for power savings.
50Ω single-ended input and output impedances.
Internal DC overvoltage protection.
Internal RF overdrive protection.
On-chip ESD protection.
Oper.
