HA17431HLTP, HA17431H, Shunt Regulator

Data Sheet HA17431H Series Shunt Regulator R03DS0088EJ0300 Rev.3.00 Jan 10, 2014 .
The HA17431H series is temperature-compensated variable shunt regulators.

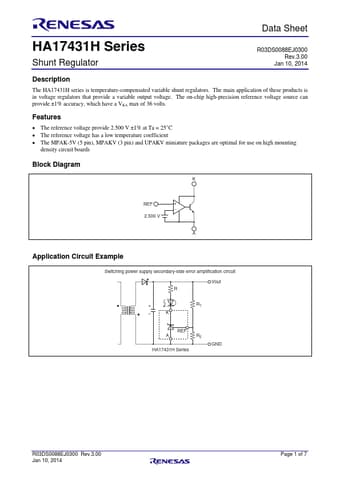

datasheet Preview Page 1 from Datasheet4u.com

HA17431H_RenesasTechnology.pdf

HA17431HLTP Datasheet Preview — This datasheet PDF includes multiple part numbers: HA17431HLTP, HA17431H. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HA17431HLTP, HA17431H

Manufacturer:

Renesas ↗

File Size:

180.06 KB

Description:

Shunt Regulator

Note:

This datasheet PDF includes multiple part numbers: HA17431HLTP, HA17431H.
Please refer to the document for exact specifications by model.

Features

* The reference voltage provide 2.500 V ±1% at Ta = 25°C
* The reference voltage has a low temperature coefficient
* The MPAK-5V (5 pin), MPAKV (3 pin) and UPAKV miniature packages are optimal for use on high mounting density circuit boards Block Diagram K REF +
