HA17431HUP - Shunt Regulator

This page provides the datasheet information for the HA17431HUP, a member of the HA17431H Shunt Regulator family.

Datasheet Summary

Description

The HA17431H series is temperature-compensated variable shunt regulators.

The main application of these products is in voltage regulators that provide a variable output voltage.

The on-chip high-precision reference voltage source can provide ±1% accuracy, which have a VKA max of 36 volts.

Features

  • The reference voltage provide 2.500 V ±1% at Ta = 25°C.
  • The reference voltage has a low temperature coefficient.
  • The MPAK-5V (5 pin), MPAKV (3 pin) and UPAKV miniature packages are optimal for use on high mounting density circuit boards Block Diagram K REF +.
  • 2.500 V A.

📥 Download Datasheet

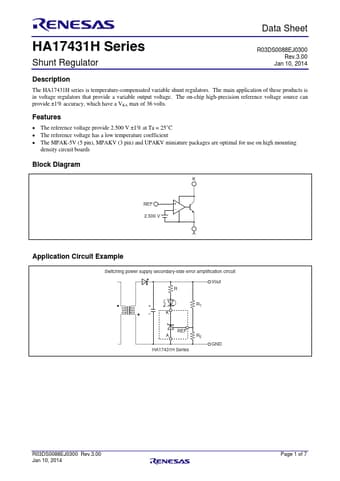

Datasheet preview – HA17431HUP
