HA17431HP - Shunt Regulator

This page provides the datasheet information for the HA17431HP, a member of the HA17431H Shunt Regulator family.

Datasheet Summary

Description

The HA17431H series is temperature-compensated variable shunt regulators.

The main application of these products is in voltage regulators that provide a variable output voltage.

The on-chip high-precision reference voltage source can provide ±1% accuracy, which have a VKA max of 36 volts.

Features

  • The reference voltage provide 2.500 V ±1% at Ta = 25°C.
  • The reference voltage has a low temperature coefficient.
  • The MPAK-5V (5 pin), MPAKV (3 pin) and UPAKV miniature packages are optimal for use on high mounting density circuit boards Block Diagram K REF +.
  • 2.500 V A.

📥 Download Datasheet

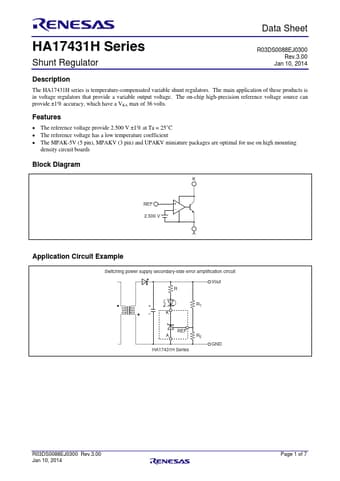

Datasheet preview – HA17431HP

Datasheet Details

Part number HA17431HP
Manufacturer Renesas
File Size 180.06 KB
Description Shunt Regulator
Datasheet download datasheet HA17431HP Datasheet
Additional preview pages of the HA17431HP datasheet.

📁 Similar Datasheet

  • HA17431H - Shunt Regulator (Renesas Technology)
  • HA17408P - 8-Bit Multiplying Digital-to-Analog Converter (Hitachi Semiconductor)
  • HA17451AFP - Switching Regulator Controllers for DC/DC Converters (Hitachi Semiconductor)
  • HA17451AP - Switching Regulator Controllers for DC/DC Converters (Hitachi Semiconductor)
  • HA17451FP - PWM Control Dual Switching Regulator (Hitachi)
  • HA17451P - PWM Control Dual Switching Regulator (Hitachi)
  • HA17458 - Dual Operational Amplifier (Hitachi Semiconductor)
  • HA17458F - Dual Operational Amplifier (Hitachi Semiconductor)
  • HA17458PS - Dual Operational Amplifier (Hitachi Semiconductor)
  • HA17474 - Quad Operational Amplifier (Hitachi Semiconductor)
Other Datasheets by Renesas

Full PDF Text Transcription

Click to expand full text
Data Sheet HA17431H Series Shunt Regulator R03DS0088EJ0300 Rev.3.00 Jan 10, 2014 Description The HA17431H series is temperature-compensated variable shunt regulators. The main application of these products is in voltage regulators that provide a variable output voltage. The on-chip high-precision reference voltage source can provide ±1% accuracy, which have a VKA max of 36 volts. Features • The reference voltage provide 2.500 V ±1% at Ta = 25°C • The reference voltage has a low temperature coefficient • The MPAK-5V (5 pin), MPAKV (3 pin) and UPAKV miniature packages are optimal for use on high mounting density circuit boards Block Diagram K REF + − 2.
