HD74LS20P - Dual 4-input Positive NAND Gates

This page provides the datasheet information for the HD74LS20P, a member of the HD74LS20 Dual 4-input Positive NAND Gates family.

Datasheet Summary

Features

  • Ordering Information Part Name Package Type Package Code Package (Previous Code) Abbreviation HD74LS20P DILP-14 pin PRDP0014AB-B (DP-14AV) P HD74LS20FPEL SOP-14 pin (JEITA) PRSP0014DF-B FP (FP-14DAV) HD74LS20RPEL SOP-14 pin (JEDEC) PRSP0014DE-A (FP-14DNV) RP Note: Please consult the sales office for the above package availability. Pin Arrangement REJ03D0400.
  • 0200 Rev.2.00 Feb.18.2005 Taping Abbreviation (Quantity).
  • EL (2,000 pcs/reel) EL (2,500 pcs/reel.

📥 Download Datasheet

Datasheet preview – HD74LS20P

Datasheet Details

Part number HD74LS20P
Manufacturer Renesas
File Size 154.82 KB
Description Dual 4-input Positive NAND Gates
Datasheet download datasheet HD74LS20P Datasheet
Additional preview pages of the HD74LS20P datasheet.

📁 Similar Datasheet

  • HD74LS20 - Dual 4-input Positive NAND Gates (Hitachi Semiconductor)
  • HD74LS21 - Dual 4-input Positive AND Gates (Hitachi Semiconductor)
  • HD74LS22 - Dual 4-input Positive NAND Gates (Hitachi Semiconductor)
  • HD74LS221 - Dual Monostable Multivibrators (Hitachi Semiconductor)
  • HD74LS240 - Octal Buffers/Line Drivers/Line Receivers (Hitachi Semiconductor)
  • HD74LS241 - Octal Buffers/Line Drivers/Line Receivers (Hitachi Semiconductor)
  • HD74LS242 - Quadruple Bus Transceivers (Hitachi Semiconductor)
  • HD74LS243 - Quadruple Bus Transceivers (Hitachi Semiconductor)
  • HD74LS244 - Octal Buffers/Line Drivers/Line Receivers (Hitachi Semiconductor)
  • HD74LS245 - OCTAL BUS TRANCEIVERS (Hitachi Semiconductor)
Other Datasheets by Renesas
  • HD74LS20 - Dual 4-input Positive NAND Gates
  • HD74LS21 - Dual 4-input Positive AND Gates
  • HD74LS21P - Dual 4-input Positive AND Gates
  • HD74LS221 - Dual Monostable Multivibrators
  • HD74LS221P - Dual Monostable Multivibrators
  • HD74LS240 - Octal Buffers / Line Drivers / Line Receivers
  • HD74LS240P - Octal Buffers / Line Drivers / Line Receivers
  • HD74LS241 - Octal Buffers / Line Drivers / Line Receivers

Full PDF Text Transcription

Click to expand full text

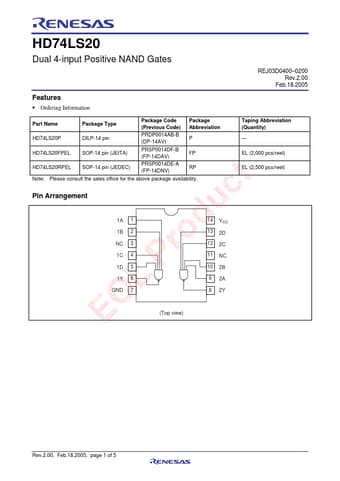

HD74LS20 Dual 4-input Positive NAND Gates Features • Ordering Information Part Name Package Type Package Code Package (Previous Code) Abbreviation HD74LS20P DILP-14 pin PRDP0014AB-B (DP-14AV) P HD74LS20FPEL SOP-14 pin (JEITA) PRSP0014DF-B FP (FP-14DAV) HD74LS20RPEL SOP-14 pin (JEDEC) PRSP0014DE-A (FP-14DNV) RP Note: Please consult the sales office for the above package availability. Pin Arrangement REJ03D0400–0200 Rev.2.00 Feb.18.2005 Taping Abbreviation (Quantity) — EL (2,000 pcs/reel) EL (2,500 pcs/reel) 1A 1 1B 2 NC 3 1C 4 1D 5 1Y 6 GND 7 14 VCC 13 2D 12 2C 11 NC 10 2B 9 2A 8 2Y (Top view) Rev.2.00, Feb.18.2005, page 1 of 5 HD74LS20 Circuit Schematic (1/2) Inputs A B C D VCC 8k 75 20k 4.5k Output Y 1.
