HD74LS85P Datasheet - Renesas

HD74LS85P 4-bit Magnitude Comparator

HD74LS85 4-bit Magnitude Comparator REJ03D0421 0200 Rev.2.00 Feb.18.2005 This four bit magnitude comparator performs comparison of straight binary and straight BCD (8-4-2-1) codes. Three fully decoded decisions about two 4-bit words (A, B) are made and are externally available at three outputs. This device is fully expandable to any number of bits without external gates. Words of greater length may be compared by connecting comparators in cascade. The A > B, A < B, and A = B outputs o.

HD74LS85P Features

* Ordering Information Part Name Package Type Package Code (Previous Code) Package Abbreviation HD74LS85P DILP-16 pin PRDP0016AE-B P (DP-16FV) HD74LS85FPEL SOP-16 pin (JEITA) PRSP0016DH-B (FP-16DAV) FP Note: Please consult the sales office for the above package availability. Ta

HD74LS85P Datasheet (183.43 KB)

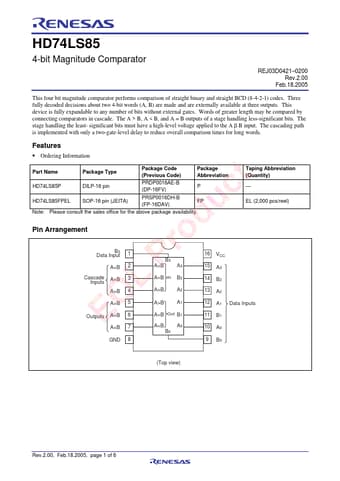

Preview of HD74LS85P PDF
HD74LS85P Datasheet Preview Page 2 HD74LS85P Datasheet Preview Page 3

Datasheet Details

Part number:

HD74LS85P

Manufacturer:

Renesas ↗

File Size:

183.43 KB

Description:

4-bit magnitude comparator.
