ICL7106

A/D Converters

ICL7106 Features

* auto zero to less than 10µV, zero drift of less than 1µV/°C, input bias current of 10pA (max) and rollover error of less than one count. True differential inputs and reference are useful in all systems, but give the designer an uncommon advantage when measuring load cells, strain gauges and other br

ICL7106 Datasheet (666.78 KB)

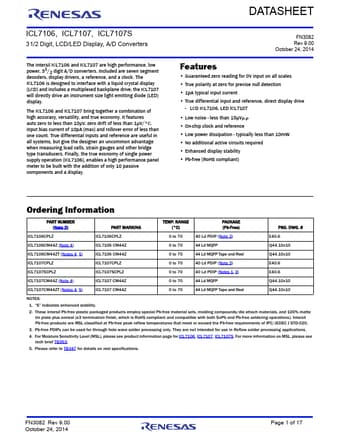

Preview of ICL7106 PDF

Datasheet Details

Part number:

ICL7106

Manufacturer:

Renesas ↗

File Size:

666.78 KB

Description:

A/d converters.
ICL7106, ICL7107, ICL7107S 31/2 Digit, LCD/LED Display, A/D Converters The Intersil ICL7106 and ICL7107 are high performance, low power, 31/2 digit A/.
