ICL7665S Datasheet - Renesas

ICL7665S - CMOS Micropower Over/Under Voltage Detector

ICL7665S CMOS Micropower Over/Under Voltage Detector The ICL7665S super CMOS micropower Over/Under voltage detector contains two low power, individually programmable voltage detectors on a single CMOS chip.

Requiring typically 3A for operation, the device is intended for battery-operated systems and instruments which require high or low voltage warnings, settable trip points, or fault monitoring and correction.

The trip points and hysteresis of the two voltage detectors are individually progra

ICL7665S Features

* Guaranteed 10µA maximum quiescent current over-temperature

* Guaranteed wider operating voltage range over entire operating temperature range

* 2% threshold accuracy (ICL7665SA)

* Dual comparator with precision internal reference

* 100ppm/°C temperature coef

ICL7665S-Renesas.pdf

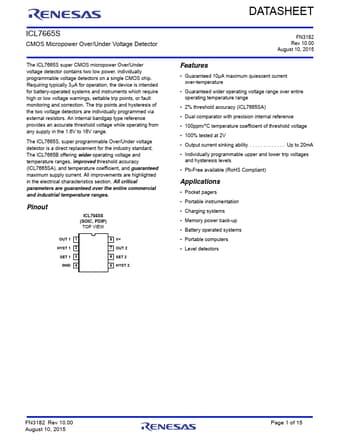

Preview of ICL7665S PDF
ICL7665S Datasheet Preview Page 2 ICL7665S Datasheet Preview Page 3

Datasheet Details

Part number:

ICL7665S

Manufacturer:

Renesas ↗

File Size:

684.41 KB

Description:

Cmos micropower over/under voltage detector.
