ID82C52 Datasheet, Interface, Renesas

ID82C52 Features

  • Interface
  • Single Chip UART/BRG
  • DC to 16MHz (1M Baud) Operation
  • Crystal or External Clock Input
  • On-Chip Baud Rate Generator - 72 Selectable Baud Rates

PDF File Details

Part number:

ID82C52

Manufacturer:

Renesas ↗

File Size:

1.06MB

Download:

📄 Datasheet

Description:

Cmos serial controller interface. PIN SYMBOL NO. TYPE RD 1 I WR 2 I D0-D7 3-10 I/O A0, A1 11, 12 I IX, OX 13, 14 I/O SDO 15 O GND 16 CTS 17 I DSR

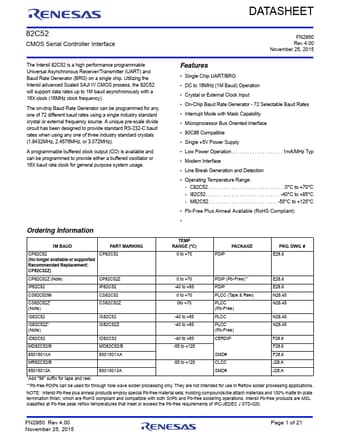

Datasheet Preview: ID82C52 📥 Download PDF (1.06MB)
Page 2 of ID82C52 Page 3 of ID82C52

ID82C52 Application

  • Applications NOTE: Intersil Pb-free plus anneal products employ special Pb-free material sets; molding compounds/die attach materials and 100% matt
