IDT49FCT20805 - 2.5V CMOS DUAL 1-TO-5 CLOCK DRIVER

Renesas

📥 Download Datasheet

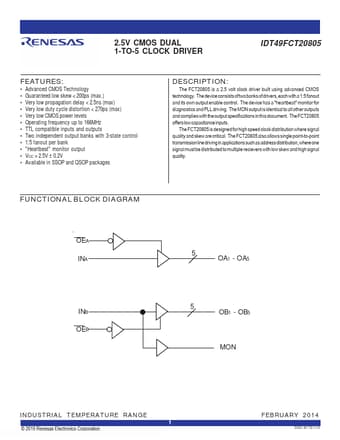

IDT49FCT20805 Datasheet Preview — Preview of IDT49FCT20805 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IDT49FCT20805
Manufacturer	Renesas ↗
File Size	236.45 KB
Description	2.5V CMOS DUAL 1-TO-5 CLOCK DRIVER
Datasheet	IDT49FCT20805-Renesas.pdf

IDT49FCT20805 Product details

Description

The FCT20805 is a 2.5 volt clock driver built using advanced CMOS technology.

Features

Advanced CMOS Technology.
Guaranteed low skew < 200ps (max. ).
Very low propagation delay < 2.5ns (max).
Very low duty cycle distortion < 270ps (max).
Very low CMOS power levels.
Operating frequency up to 166MHz.
TTL compatible inputs and outputs.
Two independent output banks with 3-state control.
1:5 fanout per bank.
"Heartbeat" monitor output.
VCC = 2.5V ± 0.2V.
Available in SSOP and QS.
