IDT5V19EE604

EEPROM PROGRAMMABLE VCXO CLOCK GENERATOR

Renesas

IDT5V19EE604 Features

* Four internal PLLs

* Internal non-volatile EEPROM

* Fast (400kHz) mode I2C serial interface

* Input frequency range: 1 MHz to 200 MHz

* Output frequency range: 4.9 kHz to 200 MHz

* Reference crystal input with programmable linear load capacitance

IDT5V19EE604 General Description

The IDT5V19EE604 is a programmable clock generator intended for high performance data-communications, telecommunications, consumer, and networking applications. There are four internal PLLs, each individually programmable, allowing for four unique non-integer-related frequencies. The frequencies are.

IDT5V19EE604 Datasheet (463.09 KB)

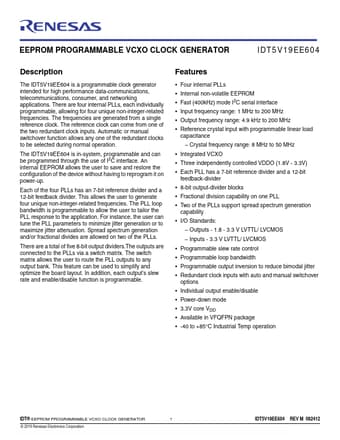

IDT5V19EE604 Datasheet Preview — Preview of IDT5V19EE604 PDF

Datasheet Details

Part number:

IDT5V19EE604

Manufacturer:

Renesas ↗

File Size:

463.09 KB

Description:

Eeprom programmable vcxo clock generator.
