IDT7025L, IDT7025S - HIGH-SPEED 8K x 16 DUAL-PORT STATIC RAM

IDT7025L Description

HIGH-SPEED 8K x 16 DUAL-PORT STATIC RAM 7025S/L .
The IDT7025 is a high-speed 8K x 16 Dual-Port Static RAM.

IDT7025L Features

* True Dual-Ported memory cells which allow simultaneous reads of the same memory location
* High-speed access
* Commercial: 15/17/20/25/35/55ns (max. )
* Industrial: 20ns (max. )
* Military: 20/25/35/55/70ns (max. )
* Low-power operation
* IDT7025S Active: 7

IDT7025L Applications

* results in full-speed, errorfree operation without the need for additional discrete logic. This device provides two independent ports with separate control, address, and I/O pins that permit independent, asynchronous access for reads or writes to any location in memory. An automatic power down feat

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IDT7025L, IDT7025S. Please refer to the document for exact specifications by model.

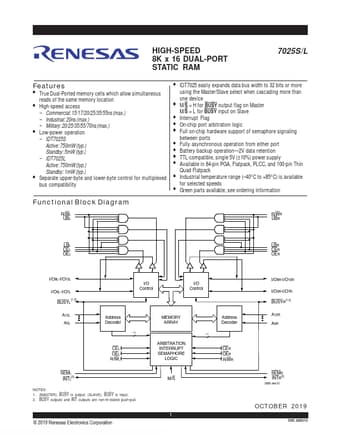

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IDT7025L, IDT7025S
Manufacturer
Renesas ↗
File Size
389.97 KB
Datasheet
IDT7025S-Renesas.pdf
Description
HIGH-SPEED 8K x 16 DUAL-PORT STATIC RAM
Note
This datasheet PDF includes multiple part numbers: IDT7025L, IDT7025S.
Please refer to the document for exact specifications by model.
