IDT7006S

HIGH-SPEED 16K x 8 DUAL-PORT STATIC RAM

IDT7006S Features

* True Dual-Ported memory cells which allow simultaneous reads of the same memory location

* High-speed access

* Commercial: 15/17/20/25/35/55ns (max.)

* Industrial: 20ns (max.)

* Military: 20/25/35/55/70ns (max.)

* Low-power operation

* IDT7006S Active: 7

IDT7006S General Description

The IDT7006 is a high-speed 16K x 8 Dual-Port Static RAM. The IDT7006 is designed to be used as a stand-alone 128K-bit Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 16-bit-or-more word systems. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 16-bit or wider memory system appl.

IDT7006S Datasheet (299.03 KB)

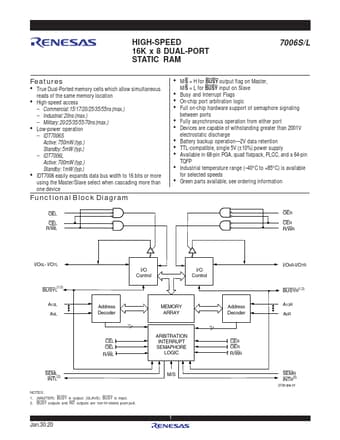

Preview of IDT7006S PDF

Datasheet Details

Part number:

IDT7006S

Manufacturer:

Renesas ↗

File Size:

299.03 KB

Description:

High-speed 16k x 8 dual-port static ram.
