IDT7025S, HIGH-SPEED 8K x 16 DUAL-PORT STATIC RAM

HIGH-SPEED 8K x 16 DUAL-PORT STATIC RAM 7025S/L .
The IDT7025 is a high-speed 8K x 16 Dual-Port Static RAM.

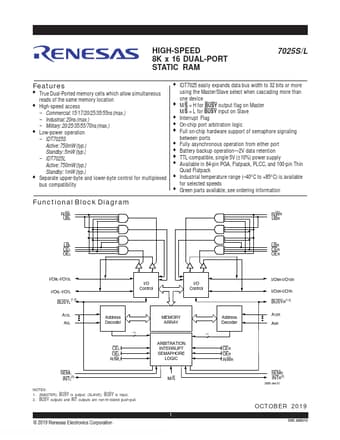

datasheet Preview Page 1 from Datasheet4u.com

IDT7025S-Renesas.pdf

IDT7025S Datasheet Preview — Preview of IDT7025S PDF

Datasheet Details

Part number:

IDT7025S

Manufacturer:

Renesas ↗

File Size:

389.97 KB

Description:

HIGH-SPEED 8K x 16 DUAL-PORT STATIC RAM

Features

* True Dual-Ported memory cells which allow simultaneous reads of the same memory location
* High-speed access
* Commercial: 15/17/20/25/35/55ns (max. )
* Industrial: 20ns (max. )
* Military: 20/25/35/55/70ns (max. )
* Low-power operation
* IDT7025S Active: 7

Applications

* results in full-speed, errorfree operation without the need for additional discrete logic. This device provides two independent ports with separate control, address, and I/O pins that permit independent, asynchronous access for reads or writes to any location in memory. An automatic power down feat
