IDT7140SA

HIGH SPEED 1K x 8 DUAL-PORT STATIC SRAM

IDT7140SA Features

* High-speed access

* Commercial: 20/25/35/55/100ns (max.)

* Industrial: 25/55/100ns (max.)

* Military: 25/35/55/100ns (max.)

* Low-power operation

* IDT7130/IDT7140SA

* Active: 550mW (typ.)

* Standby: 5mW (typ.)

* IDT7130/IDT7140LA

IDT7140SA General Description

The IDT7130/IDT7140 are high-speed 1K x 8 Dual-Port Static RAMs. The IDT7130 is designed to be used as a stand-alone 8-bit Dual-Port RAM or as a "MASTER" Dual-Port RAM together with the IDT7140 "SLAVE" Dual-Port in 16-bit-or-more word width systems. Using the IDT MASTER/SLAVE Dual-Port RAM approach .

IDT7140SA Datasheet (291.93 KB)

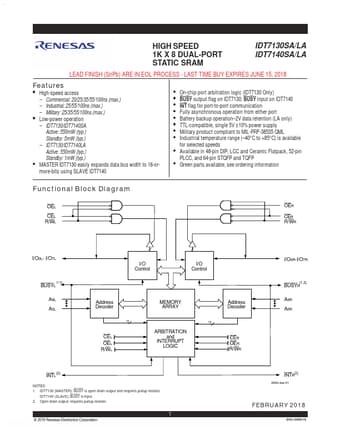

Preview of IDT7140SA PDF

Datasheet Details

Part number:

IDT7140SA

Manufacturer:

Renesas ↗

File Size:

291.93 KB

Description:

High speed 1k x 8 dual-port static sram.
HIGH SPEED 1K X 8 DUAL-PORT STATIC SRAM IDT7130SA/LA IDT7140SA/LA LEAD FINISH (SnPb) ARE IN EOL PROCESS - LAST TIME BUY EXPIRES JUNE 15, 2018 Featu.
