IDT7200 Datasheet - Renesas

IDT7200 CMOS ASYNCHRONOUS FIFO

The IDT7200/7201/7202 are dual-port memories that load and empty data on a first-in/first-out basis. The devices use Full and Empty flags to prevent data overflow and underflow and expansion logic to allow for unlimited expansion capability in both word size and depth. The reads and writes are inte.

IDT7200 Features

* First-In/First-Out dual-port memory

* 256 x 9 organization (IDT7200)

* 512 x 9 organization (IDT7201)

* 1,024 x 9 organization (IDT7202)

* Low power consumption

* Active: 440mW (max.)

* Power-down: 28mW (max.)

* Ultra high speed

IDT7200 Datasheet (249.29 KB)

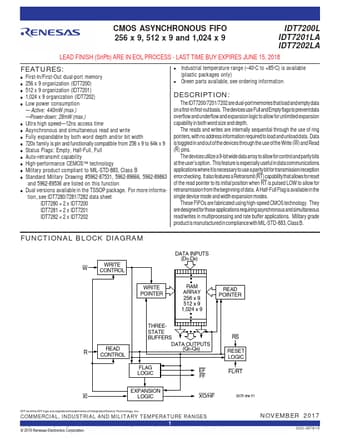

Preview of IDT7200 PDF
IDT7200 Datasheet Preview Page 2 IDT7200 Datasheet Preview Page 3

Datasheet Details

Part number:

IDT7200

Manufacturer:

Renesas ↗

File Size:

249.29 KB

Description:

Cmos asynchronous fifo.
