IDT7202LA Datasheet PDF - Renesas CMOS ASYNCHRONOUS FIFO Specs

IDT7202LA - CMOS ASYNCHRONOUS FIFO

This page provides the datasheet information for the IDT7202LA, a member of the IDT7200L CMOS ASYNCHRONOUS FIFO family.

Datasheet Summary

Description

The IDT7200/7201/7202 are dual-port memories that load and empty data on a first-in/first-out basis.

The devices use Full and Empty flags to prevent data overflow and underflow and expansion logic to allow for unlimited expansion capability in both word size and depth.

Features

First-In/First-Out dual-port memory.
256 x 9 organization (IDT7200).
512 x 9 organization (IDT7201).
1,024 x 9 organization (IDT7202).
Low power consumption.
Active: 440mW (max. ).
Power-down: 28mW (max. ).
Ultra high speed.
12ns access time.
Asynchronous and simultaneous read and write.
Fully expandable by both word depth and/or bit width.
720x family is pin and functionally compatible from.

Datasheet Details

Part number	IDT7202LA
Manufacturer	Renesas
File Size	249.29 KB
Description	CMOS ASYNCHRONOUS FIFO
Datasheet	IDT7202LA Datasheet

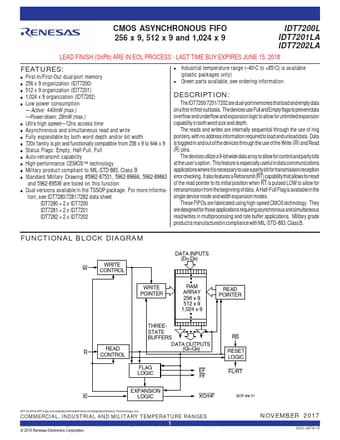

Additional preview pages of the IDT7202LA datasheet.

📁 Similar Datasheet

IDT7202LA - CMOS ASYNCHRONOUS FIFO (IDT)

IDT72021 - (IDT720x1) CMOS ASYNCHRONOUS FIFO (Integrated Device Technology)

IDT7202SA - CMOS Parallel First-in / First-Out FIFO (IDT)

IDT7200L - CMOS ASYNCHRONOUS FIFO (IDT)

IDT7201LA - CMOS ASYNCHRONOUS FIFO (IDT)

IDT7201SA - CMOS Parallel First-in / First-Out FIFO (IDT)

IDT7203 - CMOS ASYNCHRONOUS FIFO (Integrated Device Technology)

IDT72031 - CMOS ASYNCHRONOUS FIFO (Integrated Device Technology)

IDT7204 - (IDT7203 - IDT7208) CMOS ASYNCHRONOUS FIFO (Integrated Device Technology)

IDT72041 - (IDT720x1) CMOS ASYNCHRONOUS FIFO (Integrated Device Technology)

Full PDF Text Transcription

Click to expand full text

CMOS ASYNCHRONOUS FIFO 256 x 9, 512 x 9 and 1,024 x 9 IDT7200L IDT7201LA IDT7202LA LEAD FINISH (SnPb) ARE IN EOL PROCESS - LAST TIME BUY EXPIRES JUNE 15, 2018 FEATURES: • First-In/First-Out dual-port memory • 256 x 9 organization (IDT7200) • 512 x 9 organization (IDT7201) • 1,024 x 9 organization (IDT7202) • Low power consumption — Active: 440mW (max.) —Power-down: 28mW (max.
