IDT7202SA - CMOS Parallel First-in / First-Out FIFO

This page provides the datasheet information for the IDT7202SA, a member of the IDT7201SA CMOS Parallel First-in / First-Out FIFO family.

Datasheet Summary

Description

The IDT7201A17202A is a dual port memory that utilizes a special First-In, First-Out algorithm that loads and empties data on

Features

  • First-In, First-Out dual port memory.
  • 512 x 9 organization (IDT7201A).
  • 1024 x 9 organization (IDT7202A).
  • Low power consumption.
  • Ultra high speed - 45ns cycle time.
  • Asynchronous and simultaneous read and write.
  • Fully expandable by both word depth and/or bit width.
  • IDT7201A pin and functionally compatible with Mostek MK4501 but with half-full flag capability.
  • IDT7202A allows for deep word structure (1024) without ex.

📥 Download Datasheet

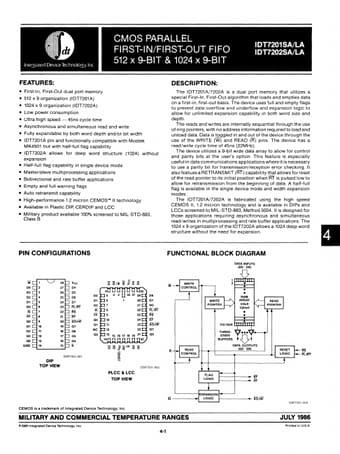

Datasheet preview – IDT7202SA
