ISL12024IRTC Datasheet - Renesas

Real-Time Clock/Calendar

ISL12024IRTC Features

* Real-Time Clock/Calendar - Tracks Time in Hours, Minutes, and Seconds - Day of the Week, Day, Month and Year - 3 Selectable Frequency Outputs

* 64-Bit Unique ID

* Two Non-Volatile Alarms - Settable on the Second, Minute, Hour, Day of the Week, Day or Month - Repeat Mode (Pe

ISL12024IRTC General Description

PIN NUMBER TDFN SYMBOL 1 X1 2 X2 3 IRQ/FOUT 4 GND 5 SDA 6 SCL 7 VBAT 8 VDD DESCRIPTION The X1 pin is the input of an inverting amplifier and is intended to be connected to one pin of an external 32.768kHz quartz crystal. The X2 pin is the output of an inverting amplifier and is .

ISL12024IRTC Datasheet (954.62 KB)

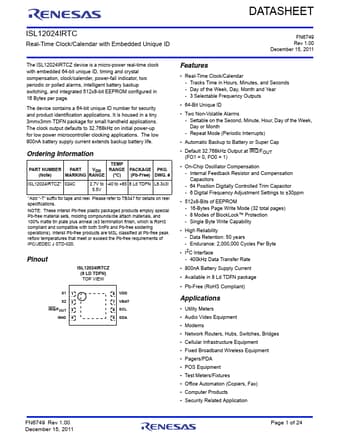

ISL12024IRTC Datasheet Preview — Preview of ISL12024IRTC PDF

Datasheet Details

Part number:

ISL12024IRTC

Manufacturer:

Renesas ↗

File Size:

954.62 KB

Description:

Real-time clock/calendar.
DATASHEET ISL12024IRTC Real-Time Clock/Calendar with Embedded Unique ID FN6749 Rev 1.00 December 15, 2011 The ISL12024IRTCZ device is a micro-power.
