ISL22349 Datasheet - Renesas

ISL22349 Quad Digitally Controlled Potentiometers

OBSOLETE PRODUCT DATASHEET POSSIBLE SUBSTITUTE PRODUCT ISL22349 ISL22346 Quad Digitally Controlled Potentiometers (XDCP™) Low Noise, Low Power, I2C™ Bus, 128 Taps, Wiper Only FN6331 Rev 3.00 May 28, 2009 The ISL22349 integrates four digitally controlled potentiometers (DCP) and non-volatile memory on a monolithic CMOS integrated circuit. The digitally controlled potentiometers are implemented with a combination of resistor elements and CMOS switches. The position of the wipers are control.

ISL22349 Datasheet (723.92 KB)

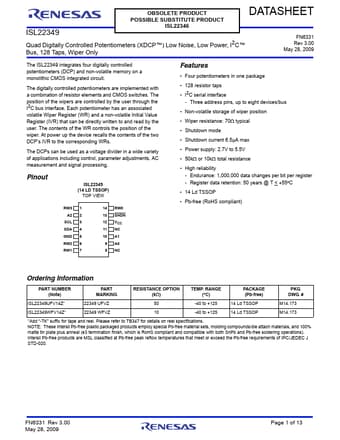

Preview of ISL22349 PDF
ISL22349 Datasheet Preview Page 2 ISL22349 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL22349

Manufacturer:

Renesas ↗

File Size:

723.92 KB

Description:

Quad digitally controlled potentiometers.
