ISL24006 14-Channel Programmable Switchable I2C TFT-LCD Reference Voltage Generator

No load 30 2.75 38 4 mA mA Digital Supply Current VREFU_H = 14V, AVDD = 15V VREFU_L = 8.5V, AVDD = 15V VREFL_H = 6.5V, AVDD = 15V VREFL_L = 1.0V, AVDD = 15V AVDD is moved from 14V to 16V 13.94 8.47 6.44 0.96 42 -50 13.98 8.51 6.48 1.00 50 0 2 0.5 14.02 8.55 6.52 1.04 V V V V dB Power Supp.
www.DataSheet4U.com ® ISL24006 Data Sheet September 9, 2005 FN6110.1 14-Channel Programmable Switchable I2C TFT-LCD Reference Voltage Generator with Integrated 4-Channel Static Gamma Drivers The ISL24006 is a 14-channel programmable switchable reference voltage generator with four channels of static gamma drivers integrated, for a complete 18-channel total gamma solution for TFT-LCD displays. The 14-channel programmable switchable configuration allows switching between two gamma curves. The I.

ISL24006 Features

* 14-channel programmable switchable

* 4-channel static

* Fast switch time (< 1µs)

* Programmable with 20mV resolution

* Digital supply 3.3V to 5V

* Supply current of 32mA (without load)

* Rail-to-Rail capability

* I2C interface

ISL24006_IntersilCorporation.pdf

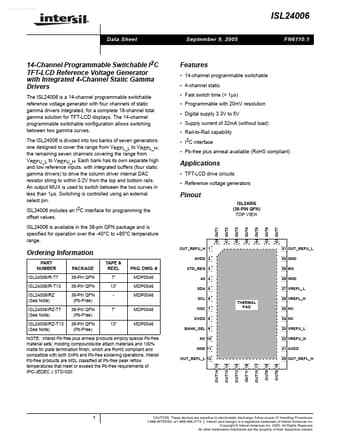

Preview of ISL24006 PDF
