ISL24016 - High Voltage 7-Channel Voltage Level Translator and 2 RRIO Amplifiers

ISL24016 Description

DATA SHORT To request the full datasheet, please visit www.intersil.com/products/isl24016 ISL24016 High Voltage 7-Channel Voltage Level Translator a.
only.

ISL24016 Features

* 18V Output Range
* Rail-to-Rail Output Voltage Range
* 200mA Peak Output Current per Channel
* 45 V/µs Level Translator Slew Rate
* Dual Rail-to-Rail Input and Output Amplifiers
* 32 Ld TQFN Package

ISL24016 Applications

* TFT-LCD Panels
* Logic Level Translator Pinout ISL24016 (32 LD TQFN) TOP VIEW IN1 IN2 IN3 IN4 AVDD IN5 IN6 IN7 32 31 30 29 28 27 26 25 OUT1 1 24 OUT7 OUT1 2 23 OUT7 OUT2 3 22 OUT6 OUT2 4 OUT3 5 THERMAL PAD 21 OUT6 20 OUT5 OUT3 6 19 OUT5 OUT4 7 18 OUTA OUT4 8 17 O

📥 Download Datasheet

Preview of ISL24016 PDF

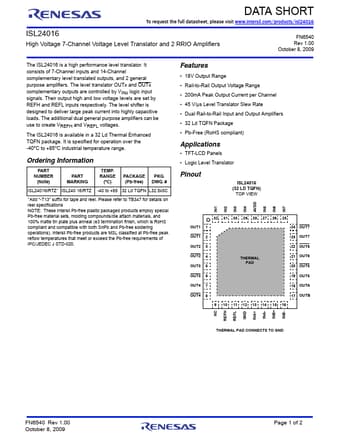

datasheet Preview Page 2

Datasheet Details

Part number
ISL24016
Manufacturer
Renesas ↗
File Size
184.86 KB
Datasheet
ISL24016-Renesas.pdf
Description
High Voltage 7-Channel Voltage Level Translator and 2 RRIO Amplifiers
