ISL24011 Octal Voltage Level Shifter

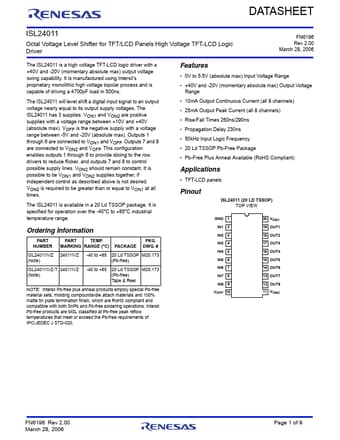

DATASHEET ISL24011 Octal Voltage Level Shifter for TFT/LCD Panels High Voltage TFT-LCD Logic Driver FN6196 Rev 2.00 March 28, 2006 The ISL24011 is a high voltage TFT-LCD logic driver with a +40V and -20V (momentary absolute max) output voltage swing capability. It is manufactured using Intersil’s proprietary monolithic high voltage bipolar process and is capable of driving a 4700pF load in 500ns. The ISL24011 will level shift a digital input signal to an output voltage nearly equal to its out.

ISL24011-Renesas.pdf

Preview of ISL24011 PDF
ISL24011 Datasheet Preview Page 2 ISL24011 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL24011

Manufacturer:

Renesas ↗

File Size:

488.63 KB

Description:

Octal voltage level shifter.
