ISL267817 - 200kSPS SAR ADC

The ISL267817 by Renesas is a 200kSPS SAR ADC. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the ISL267817 200kSPS SAR ADC datasheet (Renesas).

Datasheet Details

Part number ISL267817
Manufacturer Renesas
File Size 0.98 MB
Description 200kSPS SAR ADC
Datasheet download datasheet ISL267817-Renesas.pdf

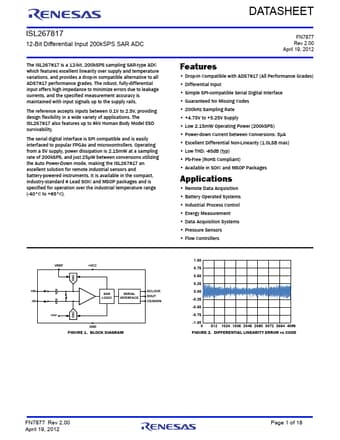

Additional preview pages of the ISL267817 datasheet.

ISL267817 Product details

Description

PIN NAME VREF +IN IN GND CS/SHDN DOUT DCLOCK +VCC PIN NUMBER DESCRIPTION 1 Reference Input 2 Non Inverting Input 3 Inverting Input 4 Ground 5 Low = Chip Select, High = Shutdown 6 Serial Output Data 7 Data Clock 8 Power Supply Ordering Information PART NUMBER (Notes 1, 2, 3) PART MARKING +VCC RANGE (V) TEMP RANGE (°C) PACKAGE PKG.DWG.# ISL267817IBZ 267817 IBZ 4.75 to 5.25 -40°C to +85°C 8 Ld SOIC M8.15 ISL267817IUZ 67817 4.75 to 5.25 -40°C to +85°C 8 Ld MS
