ISL28190 Datasheet - Renesas

ISL28190 Rail-to-Rail Output Op Amp

DATASHEET ISL28190, ISL28290 Single and Dual Single Supply Ultra-Low Noise, Ultra-Low Distortion, Rail-to-Rail Output, Op Amp FN6247 Rev 11.00 September 8, 2015 The ISL28190 and ISL28290 are tiny single and dual ultra-low noise, ultra-low distortion operational amplifiers. Fully specified to operated down to +3V single supply. These amplifiers have outputs that swing rail-to-rail, and an input common mode voltage that extends below ground (ground sensing). The ISL28190 and ISL28290 are unity .

ISL28190 Features

* 1nV/Hz input voltage noise

* 1kHz THD+N typical 0.00017% at 2VP-P VOUT

* Harmonic Distortion -87dBc, -90dBc, fo = 1MHz

* 170MHz -

ISL28190-Renesas.pdf

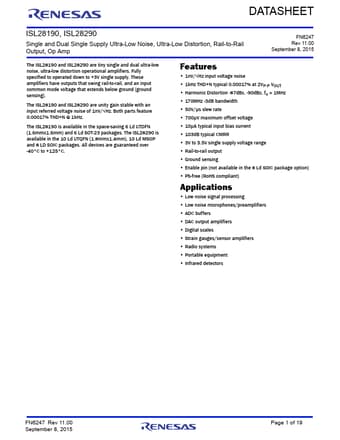

Preview of ISL28190 PDF
ISL28190 Datasheet Preview Page 2 ISL28190 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL28190

Manufacturer:

Renesas ↗

File Size:

1.66 MB

Description:

Rail-to-rail output op amp.
