ISL28197 - Rail-to-Rail Input/Output (RRIO) Comparators

Product Overview

Renesas

Part number	ISL28197
Manufacturer	Renesas
File Size	691.08 KB
Description	Rail-to-Rail Input/Output (RRIO) Comparators
Datasheet	ISL28197 Datasheet
Note	This datasheet PDF includes multiple part numbers: ISL28197, ISL28196. Please refer to the document for exact specifications by model.

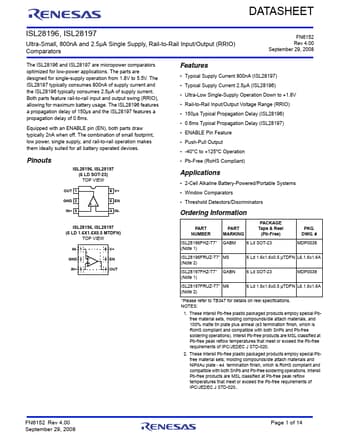

Additional preview pages of the ISL28197 datasheet.

a propagation delay of 150µs and the ISL28197 features a propagation delay of 0.6ms. Equipped with an ENABLE pin (EN), both parts draw typically 2nA when off. The combination of small footprint, low power, single supply, and rail-to-rail operation makes them ideally suited for all battery operated devices. Pinouts ISL28196, ISL28197 (6 LD SOT-23) TOP VIEW OUT 1 6 V+ GND 2 5 EN +- IN+ 3 4 IN- ISL28196, ISL28197 (6 LD 1.6X1.6X0.5.
