ISL62773 Datasheet - Renesas

ISL62773 Multiphase PWM Regulator

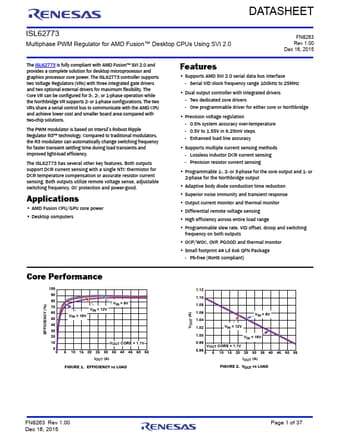

DATASHEET ISL62773 Multiphase PWM Regulator for AMD Fusion™ Desktop CPUs Using SVI 2.0 FN8263 Rev 1.00 Dec 16, 2015 The ISL62773 is fully compliant with AMD Fusion™ SVI 2.0 and provides a complete solution for desktop microprocessor and graphics processor core power. The ISL62773 controller supports two Voltage Regulators (VRs) with three integrated gate drivers and two optional external drivers for maximum flexibility. The Core VR can be configured for 3-, 2-, or 1-phase operation while the .

ISL62773 Features

* Both outputs support DCR current sensing with a single NTC thermistor for DCR temperature compensation or accurate resistor current sensing. Both outputs utilize remote voltage sense, adjustable switching frequency, OC protection and power-good. Applications

* AMD Fusion CPU/GPU core power

ISL62773 Datasheet (1.61 MB)
