ISL6271A Datasheet - Renesas

ISL6271A Integrated XScale Regulator

VID3 PGND PHASE PVCC PGOOD ISL6271A Integrated XScale Regulator The ISL6271A is a versatile power management IC (PMIC) designed for the Xscale type of processors. The device integrates three regulators, two fault indicators and an I2C bus for communication with a host microprocessor. Two of the three regulators function as low power, low drop out regulators, designed to power SRAM and phase-lock loop circuitry internal to the Xscale processor. The third regulator uses a proprietary switch-mode.

ISL6271A Datasheet (931.83 KB)

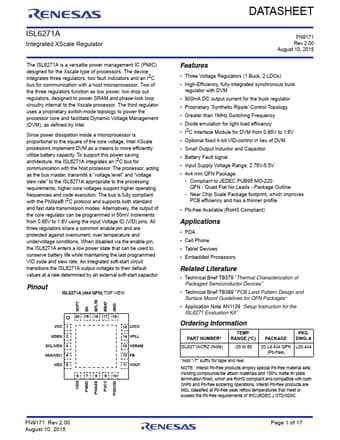

Preview of ISL6271A PDF
ISL6271A Datasheet Preview Page 2 ISL6271A Datasheet Preview Page 3

Datasheet Details

Part number:

ISL6271A

Manufacturer:

Renesas ↗

File Size:

931.83 KB

Description:

Integrated xscale regulator.
