ISL62773A Datasheet - Renesas

ISL62773A Multiphase PWM Regulator

DATASHEET ISL62773A Multiphase PWM Regulator for AMD Fusion™ Mobile CPUs Using SVI 2.0 FN8410 Rev 1.00 November 19, 2015 The ISL62773A is fully compliant with AMD Fusion™ SVI 2.0 and provides a complete solution for microprocessor and graphics processor core power. The ISL62773A controller supports two Voltage Regulators (VRs) with three integrated gate drivers and two optional external drivers for maximum flexibility. The Core VR can be configured for 3-, 2-, or 1-phase operation while the N.

ISL62773A-Renesas.pdf

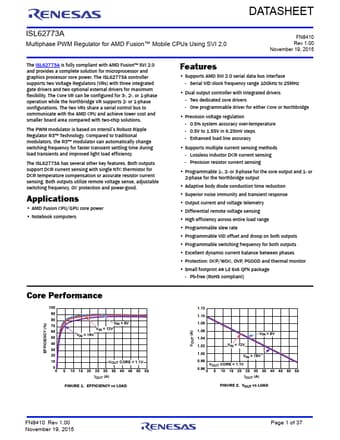

Preview of ISL62773A PDF
ISL62773A Datasheet Preview Page 2 ISL62773A Datasheet Preview Page 3

Datasheet Details

Part number:

ISL62773A

Manufacturer:

Renesas ↗

File Size:

1.63 MB

Description:

Multiphase pwm regulator.
