ISL6720A - 100V Triple Linear Bias Supply

ISL6720A Description

ISL6720A 100V Triple Linear Bias Supply The ISL6720A is a low cost linear regulator for generating a low voltage bias supply from intermediate distri.

ISL6720A Features

* 100V Input Capability
* Adjustable Auxiliary Winding Regulator with 40V Withstand Capability
* Up to 125mA Combined Output Current on Switched and Unswitched Outputs
* 250s Delayed Start (VIO, VSW) after Continuous (VCONT) Output
* Regulated Switched (VSW)

ISL6720A Applications

* It produces three separate outputs, an adjustable 0V to 20V output rated at up to 125mA which can be back-biased from an external source such as an auxiliary transformer winding, a 50mA switched regulated output adjustable between 0V and 15V, and a fixed continuous 5V output rated at 25mA. The ISL6

📥 Download Datasheet

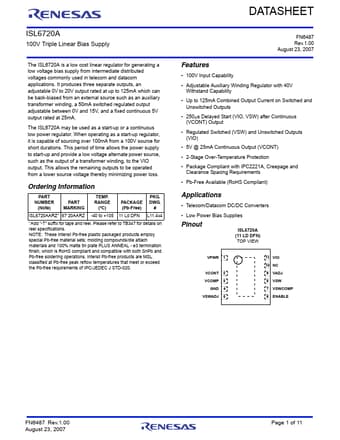

Preview of ISL6720A PDF
