ISL80102 Datasheet - Renesas

High Performance 2A and 3A Linear Regulators

ISL80102 Features

* Stable with ceramic capacitors (Note 11)

* 2A and 3A output current ratings

* 2.2V to 6V input voltage range

* ±1.8% VOUT accuracy assured over line, load, and TJ = -40°C to +125°C

* Very low 120mV dropout voltage at 3A (ISL80103)

* Very fast transie

ISL80102 General Description

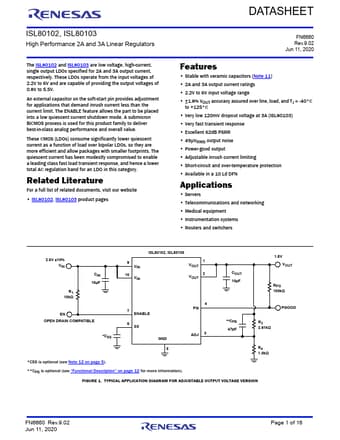

on page 12 for more information). FIGURE 1. TYPICAL APPLICATION DIAGRAM FOR ADJUSTABLE OUTPUT VOLTAGE VERSION FN6660 Rev.9.02 Jun 11, 2020 Page 1 of 16 ISL80102, ISL80103 TABLE 1. COMPONENTS VALUE SELECTION VOUT (V) RTOP RBOTTOM CPB (kΩ) (Ω) (pF) COUT (µF) 5.0 2.61 287 47 10 3.3 .

ISL80102 Datasheet (1.30 MB)

Preview of ISL80102 PDF

Datasheet Details

Part number:

ISL80102

Manufacturer:

Renesas ↗

File Size:

1.30 MB

Description:

High performance 2a and 3a linear regulators.
ISL80102, ISL80103 High Performance 2A and 3A Linear Regulators The ISL80102 and ISL80103 are low voltage, high-current, single output LDOs specified .
