ISL8013

3A Low Quiescent Current 1MHz High Efficiency Synchronous Buck Regulator

Renesas

ISL8013 Features

* include internal soft-start, internal compensation, overcurrent protection, and thermal shutdown. The ISL8013 is offered in a 4mmx4mm 16 Ld QFN package with 1mm maximum height. The complete converter occupies less than 0.4in2 area. Features

* High Efficiency Synchronous Buck Regulator with

ISL8013 General Description

PIN NUMBER 1, 2 3 5 PIN NAME VIN VDD EN 7 4 13, 14, 15 11, 12 9, 10 8 6, 16 - PG SYNCH LX PGND SGND VFB NC Exposed Pad FN6309 Rev 3.00 November 23, 2009 DESCRIPTION Input supply voltage. Connect a 10µF ceramic capacitor to power ground. Input supply voltage for the analog circuitry. Connect t.

ISL8013 Datasheet (2.19 MB)

Rating: 1 ★ (4 votes)

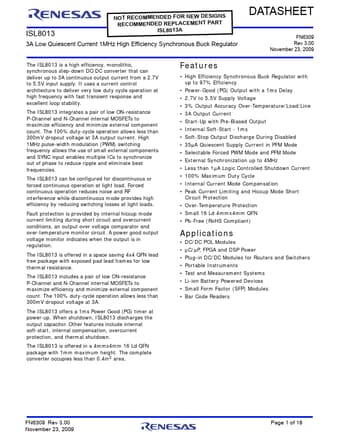

ISL8013 Datasheet Preview — Preview of ISL8013 PDF

Datasheet Details

Part number:

ISL8013

Manufacturer:

Renesas ↗

File Size:

2.19 MB

Description:

3a low quiescent current 1mhz high efficiency synchronous buck regulator.
ISL8013 NROETCROEMCMOEMNMDEENDDREDEPFLOARCNEMEWENDTEPSAIGRNTS ISL8013A 3A Low Quiescent Current 1MHz High Efficiency Synchronous Buck Regulator DAT.
