ISL8105A +5V or +12V Single-Phase Synchronous Buck Converter PWM Controller

DATASHEET ISL8105, ISL8105A +5V or +12V Single-Phase Synchronous Buck Converter PWM Controller with Integrated MOSFET Gate Drivers FN6306 Rev 5.00 April 15, 2010 The ISL8105, ISL8105A is a simple single-phase PWM controller for a synchronous buck converter. It operates from +5V or +12V bias supply voltage. With integrated linear regulator, boot diode, and N-Channel MOSFET gate drivers, the ISL8105, ISL8105A reduces external component count and board space requirements. These make the IC suita.

ISL8105A Features

* a maximum tolerance of ±1.0% over the commercial temperature range, and ±1.5% over the industrial temperature range. Two fixed oscillator frequency versions are available; 300kHz (ISL8105 for high efficiency applications) and 600kHz (ISL8105A for fast transient applications). The ISL8105, ISL8105A

ISL8105-Renesas.pdf

This datasheet PDF includes multiple part numbers: ISL8105A, ISL8105. Please refer to the document for exact specifications by model.

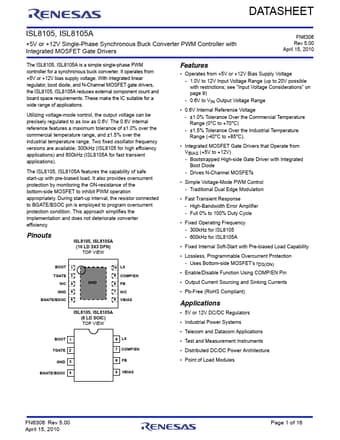

ISL8105A Datasheet Preview Page 2 ISL8105A Datasheet Preview Page 3

Datasheet Details

Part number:

ISL8105A, ISL8105

Manufacturer:

Renesas ↗

File Size:

1.05 MB

Description:

+5v or +12v single-phase synchronous buck converter pwm controller.

Note:

This datasheet PDF includes multiple part numbers: ISL8105A, ISL8105.
Please refer to the document for exact specifications by model.
