ISL8106 Single-Phase PWM Controller

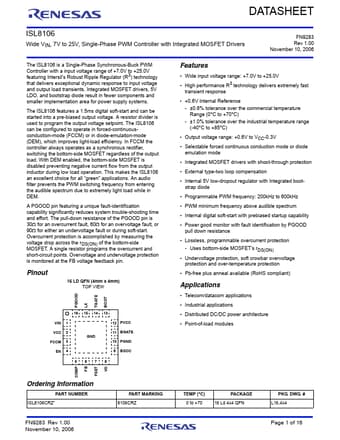

DATASHEET ISL8106 Wide VIN, 7V to 25V, Single-Phase PWM Controller with Integrated MOSFET Drivers FN9283 Rev 1.00 November 10, 2006 The ISL8106 is a Single-Phase Synchronous-Buck PWM Controller with a input voltage range of +7.0V to +25.0V featuring Intersil's Robust Ripple Regulator (R3) technology that delivers exceptional dynamic response to input voltage and output load transients. Integrated MOSFET drivers, 5V LDO, and bootstrap diode result in fewer components and smaller implementation.

ISL8106 Features

* a 1.5ms digital soft-start and can be started into a pre-biased output voltage. A resistor divider is used to program the output voltage setpoint. The ISL8106 can be configured to operate in forced-continuousconduction-mode (FCCM) or in diode-emulation-mode (DEM), which improves light-load efficienc
