ISL83075E, ISL83070E - RS-485/RS-422 Transceivers

ISL83075E Description

DATASHEET ISL83070E/71E/72E/73E/75E/76E/77E/78E ±15kV ESD Protected, 3.3V, Full Fail-safe, Low Power, High Speed or Slew Rate Limited, RS-485/RS-422 .
PIN FUNCTION RO Receiver output: If A - B  -50mV, RO is high; If A - B  -200mV, RO is low; RO = High if A and B are unconnected (floating) or s.

ISL83075E Features

* Pb-Free (RoHS Compliant)
* RS-485 I/O Pin ESD Protection  15kV HBM - Class 3 ESD Level on all Other Pins
* . >7kV HBM
* Full Fail-safe (Open, Short, Terminated/Floating) Receivers
* Hot Plug - Tx and Rx Outputs Remain Three-state D

ISL83075E Applications

* Slew rate limited versions also include receiver input filtering to enhance noise immunity in the presence of slow input signals. The ISL83070E, ISL83071E, ISL83073E, ISL83076E, ISL83077E are configured for full duplex (separate Rx input and Tx output pins) applications. The half duplex versions mu

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISL83075E, ISL83070E. Please refer to the document for exact specifications by model.

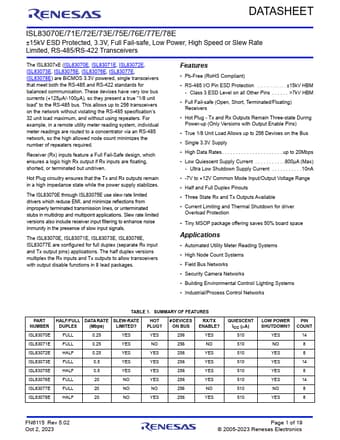

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISL83075E, ISL83070E
Manufacturer
Renesas ↗
File Size
1.24 MB
Datasheet
ISL83070E-Renesas.pdf
Description
RS-485/RS-422 Transceivers
Note
This datasheet PDF includes multiple part numbers: ISL83075E, ISL83070E.
Please refer to the document for exact specifications by model.
