ISL85403 - 2.5A Regulator

Product Overview

Renesas

📥 Download Datasheet

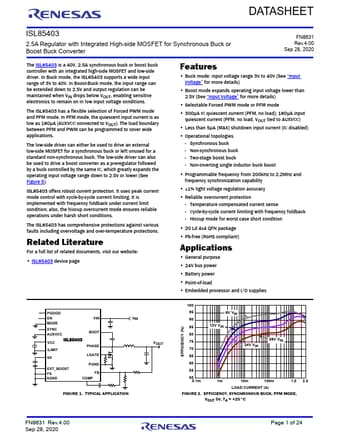

ISL85403 2.5A Regulator by Renesas - Datasheet Preview — Datasheet preview – ISL85403

Datasheet Details

Part number	ISL85403
Manufacturer	Renesas
File Size	2.53 MB
Description	2.5A Regulator
Datasheet	ISL85403 Datasheet
Additional preview pages of the ISL85403 datasheet.

Product details

Description

. .

Features

Buck mode: input voltage range 3V to 40V (See “Input Voltage” for more details).
Boost mode expands operating input voltage lower than 2.5V (See “Input Voltage” for more details).
Selectable Forced PWM mode or PFM mode.
300µA IC quiescent current (PFM, no load); 180µA input quiescent current (PFM, no load, VOUT tied to AUXVCC).
Less than 5µA (MAX) shutdown input current (IC disabled).
Operational topologies - Synchronous buck - Non-synchrono.
