ISL9519 Narrow VDC Regulator/Charger

only. Intersil may modify the circuit design and/or specifications of products at any time without notice, provided that such modification does not, in Intersil's sole judgment, affect the form, fit or function of the product. Accordingly, the reader is cautioned to verify that datasheets are curren.

DATA SHORT To request the full datasheet, please visit www.intersil.com/products/isl9519 ISL9519 Narrow VDC Regulator/Charger with SMBus Interface FN6773 Rev 3.00 March 1, 2012 The ISL9519 is a highly integrated Narrow VDC system voltage regulator and battery charger controller. Operating parameters are programmable over the System Management Bus (SMBus). The ISL9519 is designed for applications where the system power source is either the battery pack or the output of the regulator/charger. T.

ISL9519 Features

* ±0.5% System Voltage Accuracy (-10°C to +100°C)

* ±3% Accurate Input Current Limit (-10°C to +100°C)

* ±3% Accurate Battery Charge Current Limit

* Variable Switching Frequency at Light Load Conditions for Higher Efficiency

* Fixed Frequency Operation at High

ISL9519 Datasheet (161.67 KB)

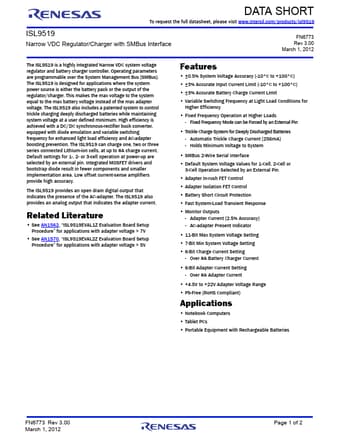

ISL9519 Datasheet Preview — Preview of ISL9519 PDF

Datasheet Details

Part number:

ISL9519

Manufacturer:

Renesas ↗

File Size:

161.67 KB

Description:

Narrow vdc regulator/charger.
