ISL95870A, ISL95870 - PWM DC/DC Controller

ISL95870A Description

DATASHEET ISL95870, ISL95870A, ISL95870B PWM DC/DC Controller with VID Inputs for Portable GPU Core-Voltage Regulator FN6899 Rev.1.00 December 2, 20.

ISL95870A Features

* Input Voltage Range: 3.3V to 25V
* Output Voltage Range: 0.5V to 5V
* Precision Regulation - Proprietary R4™ Frequency Control Loop - ±0.5% System Accuracy Over -10°C to +100°C
* Optimal Transient Response - Intersil’s R4™ Modulator Technology
* Output Remot

ISL95870A Applications

* requiring dynamically selected slew-rate controlled output voltages. The soft-start and dynamic setpoint slew-rates are capacitor programmed. Voltage identification logic-inputs select four (ISL95870A, ISL95870B) resistor-programmed setpoint reference voltages that directly set the output voltage of

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISL95870A, ISL95870. Please refer to the document for exact specifications by model.

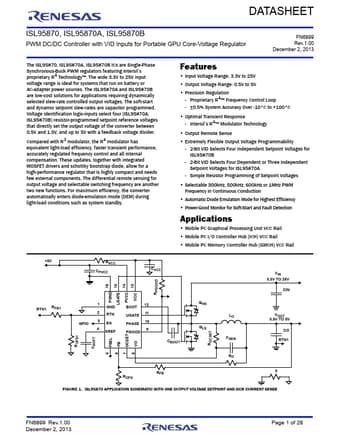

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISL95870A, ISL95870
Manufacturer
Renesas ↗
File Size
855.50 KB
Datasheet
ISL95870-Renesas.pdf
Description
PWM DC/DC Controller
Note
This datasheet PDF includes multiple part numbers: ISL95870A, ISL95870.
Please refer to the document for exact specifications by model.
