M62021FP, M62021L, System Reset-IC

M62021L/P/FP System Reset IC with Switch for Memory Backup REJ03D0784-0200 Rev.2.00 Jun 15, 2007 .
The M62021 is a system IC that controls the memory backup function of microcomputer (internal RAM).

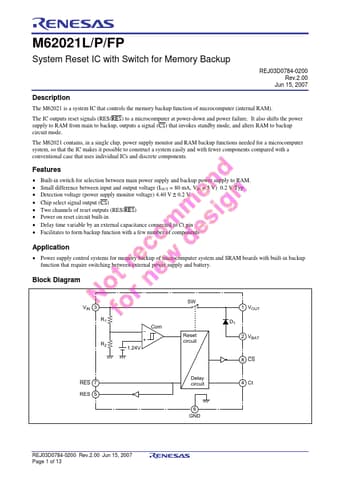

datasheet Preview Page 1 from Datasheet4u.com

M62021L-Renesas.pdf

M62021FP Datasheet Preview — This datasheet PDF includes multiple part numbers: M62021FP, M62021L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M62021FP, M62021L

Manufacturer:

Renesas ↗

File Size:

268.52 KB

Description:

System Reset-IC

Note:

This datasheet PDF includes multiple part numbers: M62021FP, M62021L.
Please refer to the document for exact specifications by model.

Features

* Built-in switch for selection between main power supply and backup power supply to RAM.
* Small difference between input and output voltage (IOUT = 80 mA, VIN = 5 V) 0.2 V Typ
* Detection voltage (power supply monitor voltage) 4.40 V ± 0.2 V
* Chip select signal out
